HK 568 HEAVY DUTY FULLY AUTOMATIC HIGH SPEED EDGE BANDING MACHINE




Short Description

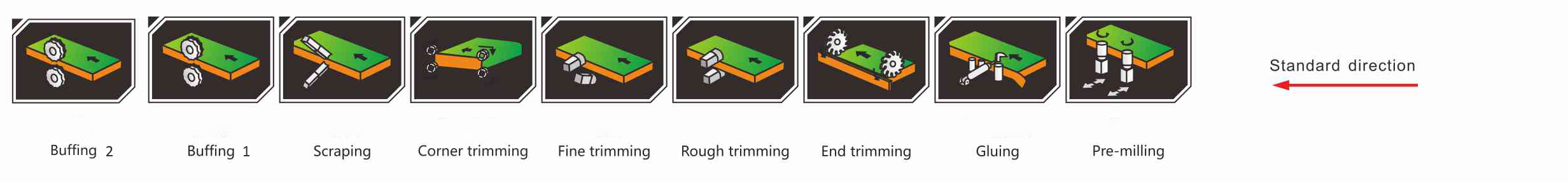

This model has 9 functions including pre-milling, Gluing, End trimming, Rough trimming, Fine trimming, corner trimming, scraping, Buffing1, Buffing2
Associate Partner of Syutech & suppliers of edge banding machine in India
Edge Bander automatic best edge banding machine is suitable for processing all kinds of MDF, particleboard, plywood, ABB boards, PVC panels, aluminium plates, organic glass plates, solid wood, and so on.

Product Functions :

TECHNICAL PARAMETERS

Model HK568
Panel Length Min.150mm (Corner Trimming 45x200MM)
Panel Width Min.40mm
Edge Band Width 10-60mm
Edge Band Thickness 0.4-3mm
Feeding Speed 18-22-25m/min
Installed Power 15kw 380V50HZ
Pneumatic Power 0.7-0.9Mpa
Overall Dimension 7000*710*1650mmmm

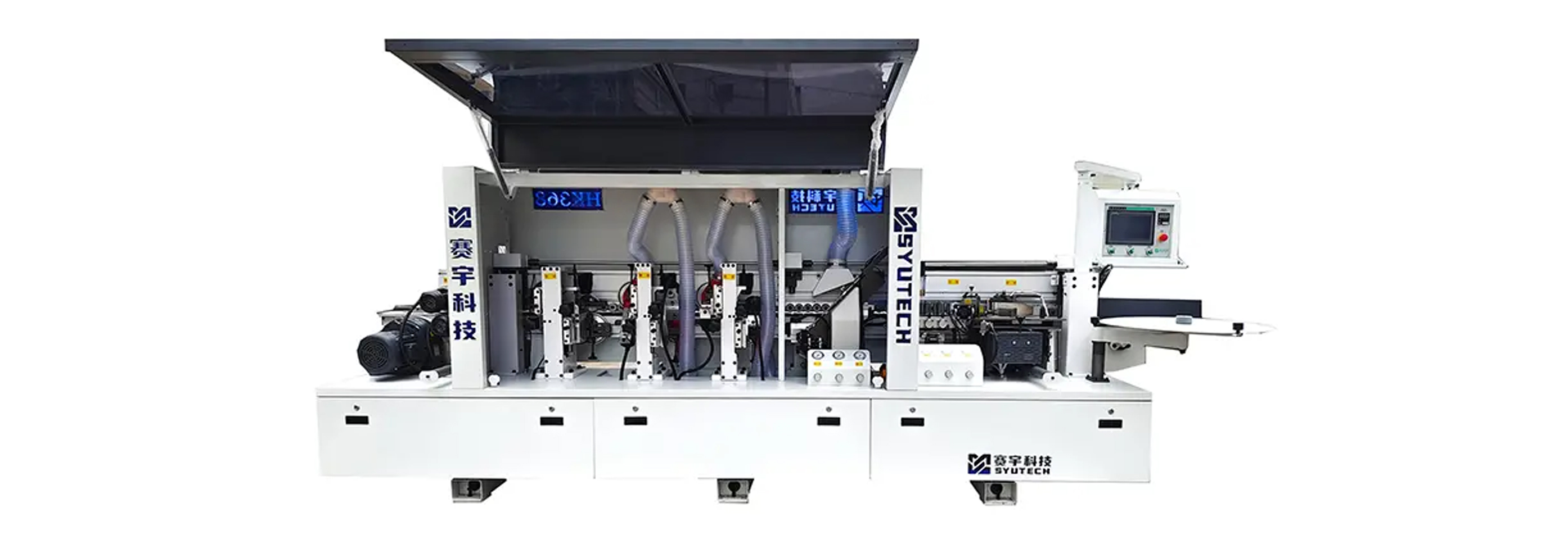

HK 368 HIGH SPEED AUTOMATIC EDGE BANDING MACHINE




Short Description

This edge banding machine features has 6 functions including Gluing,End trimming,Rough trimming,Fine trimming,scraping,Buffing
Edge Bander machine HK368 edge banding machine specifications is suitable for processing all kinds of MDF,particleboard, plywood, ABB boards, PVC panels, aluminium plates, organic glass plates, solid wood.

Product Functions :

TECHNICAL PARAMETERS

Model HK368
Panel Length Min.150mm (corner Trimming 45x200MM)
Panel Width Min.40mm
Edge Band Width 10-60mm
Edge Band Thickness 0.4-3mm
Feeding Speed 18-22-25m/min
Installed Power 10kw 380V50HZ
Pneumatic Power 0.7-0.9Mpa
Overall Dimension 4700*1000*1650mmmm

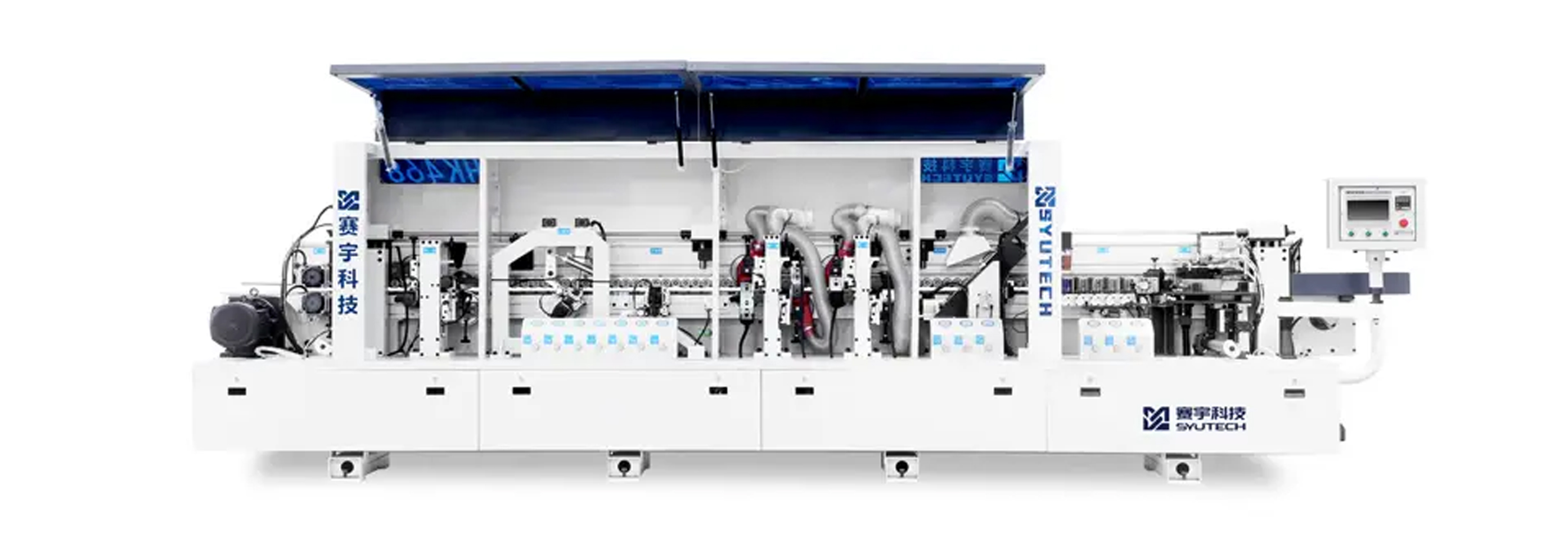

HK 468 HIGH SPEED AUTOMATIC EDGE BANDING MACHINE




Short Description

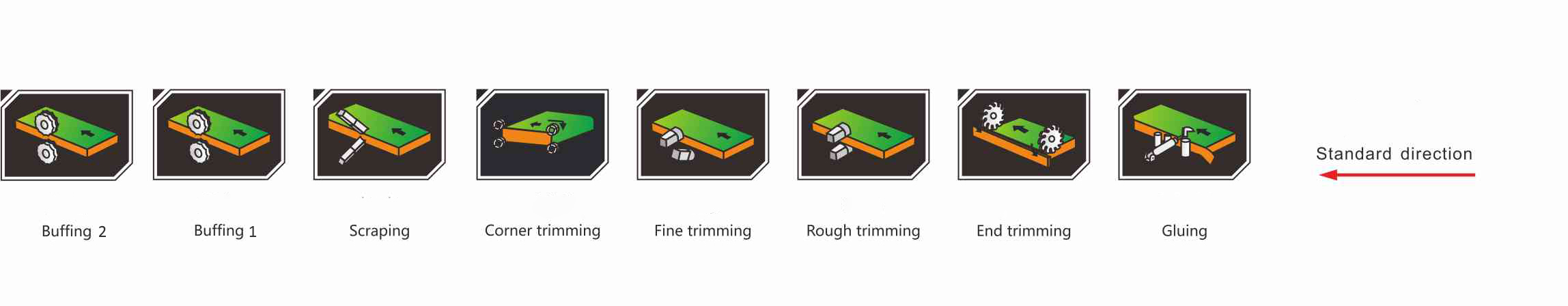

This automatic edge banding machine has 7 functions including Gluing, End trimming, Rough trimming, Fine trimming, scraping, Buffing1, Buffing1

Product Functions :

TECHNICAL PARAMETERS

Model HK468
Panel Length Min.150mm (corner Trimming 45x200MM)
Panel Width Min.40mm
Edge Band Width 10-60mm
Edge Band Thickness 0.4-3mm
Feeding Speed 18-22-25m/min
Installed Power 10kw 380V50HZ
Pneumatic Power 0.7-0.9Mpa
Overall Dimension 6100*1000*1650mmmm

ND 50D2 AUTOMATIC EDGE BANDING MACHINE




Short Description

ND-50D2 automatic edge banding machine with Gluing, trimming and cutting, scrapping , buffing and dust collection .

Features :

1. This machine is suitable for medium –density fiber board, blockboard , wood panels , particle board, plywood and other polymer doors .
2. Straight edge trimming , disposable with double – sided adhesive tape cutting edge bonding edge pressing , block , chamfer , Tinker, finishing , polishing and other functions of scrapping edge , edge smooth , smooth , feel good sealing wire , flat and smooth .
3. The equipment operation is stable , reliable and durable
4. It is especially suitable for large and medium –sized furniture, cabinets, and other furniture manufacturer’s plate using.

TECHNICAL PARAMETERS

Model WF50D all in one woodworking machinery wood edge banding machine melamine structure
Functions Gluing,trimming,end trimming,scrapping and buffing
Min edge diameter 40mm
Edge Banding Thickness 1~3mm Speed 0~14m/min
Banding Type Double Glue Sided Glue Pot Need 4000ml
Edge Banding Width 16~60mm Auxiliary Roll 2 Pairs
Operation Temperature 130~180 Heating Power 800W
Machine Size 2450x500x1250mm Working Pressure 6kg/cm square
N.W/G.W 320kg/400kg Total power 4900W
Package size 220x60x130cm Power Polishing 1600W/Trimmer 800W

EB013 PRO MINI AUTOMATIC EDGE BANDING MACHINE




Short Description

EB013 PRO is a small automatic edge banding machine . Its fully automatic multiple boards can be processed continuously with higher efficiency . And its required a small work space and suitable for small industries .
Its has functions of Straight Gluing , Straight Trimming , Straight End Cutting , Straight Buffing , Dust Collection .

Features :

1. The EB 013 Pro mini automatic edge banding is very small and does not require large work place
2. This Edge Bander id fully functional and can automatically gluing , trimming , end cutting and buffing.
3. It uses an enlarged cylinder , and its maximum cutting thickness of edge banding reaches 3mm

TECHNICAL PARAMETERS

Model MY-04 Voltage/frequency 220V/50-60Hz
Total power 4380W Working pressure 0.4-0.6Mpa
Heating power 1200W Feeding motor power 140W
Trimming motor power 650W*2 Buffing motor power 200W*2
Vacuum motor power 1200W Operating temperature 150-200℃
Glue pot capacity 4000ml Feeding speed 0-6m/min
Edge band width 10-50mm Edge band thickness 0.3-3.0mm
Machine size 200*55*110cm Packaging size 136*67*115cm
Net weight 120kg Gross weight 170kg
Edge band material PVC, ABS, melamine, wood, acrylic, etc. Custom range Voltage, frequency, LOGO, paint color, shape, structure, function, etc.
